Jogo do Labirinto Elétrico

Que tal montar um labirinto elétrico e ver como anda a sua coordenação motora?

Esquema de Montagem

Em Breve!

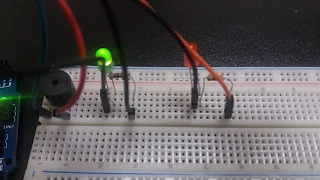

Montagem na Prática

Material

• Arduino Uno
• Protoboard
• Jumpers
• Leds
• Buzzer

Programação

//Jogo do Labirinto Elétrico //www.professorakeila.com.br #define NOTA_DO 262 int buzzer = 13, valor8; void setup() { pinMode(buzzer,OUTPUT); pinMode(12, OUTPUT); pinMode(11, OUTPUT); } void loop() { valor8 = readCapacitivePin(8); //pino 8 if(valor8>3){ tone(buzzer, NOTA_DO); delay(100); digitalWrite(12, HIGH); digitalWrite(11, LOW); delay(1000); } else{ noTone(buzzer); digitalWrite(11, HIGH); digitalWrite(12, LOW); delay(1000); } } // readCapacitivePin // Input: Arduino pin number // Output: A number, from 0 to 17 expressing // how much capacitance is on the pin // When you touch the pin, or whatever you have // attached to it, the number will get higher #include "pins_arduino.h" // Arduino pre-1.0 needs this uint8_t readCapacitivePin(int pinToMeasure) { // Variables used to translate from Arduino to AVR pin naming volatile uint8_t* port; volatile uint8_t* ddr; volatile uint8_t* pin; // Here we translate the input pin number from // Arduino pin number to the AVR PORT, PIN, DDR, // and which bit of those registers we care about. byte bitmask; port = portOutputRegister(digitalPinToPort(pinToMeasure)); ddr = portModeRegister(digitalPinToPort(pinToMeasure)); bitmask = digitalPinToBitMask(pinToMeasure); pin = portInputRegister(digitalPinToPort(pinToMeasure)); // Discharge the pin first by setting it low and output *port &= ~(bitmask); *ddr |= bitmask; delay(1); // Make the pin an input with the internal pull-up on *ddr &= ~(bitmask); *port |= bitmask; // Now see how long the pin to get pulled up. This manual unrolling of the loop // decreases the number of hardware cycles between each read of the pin, // thus increasing sensitivity. uint8_t cycles = 17; if (*pin & bitmask) { cycles = 0;} else if (*pin & bitmask) { cycles = 1;} else if (*pin & bitmask) { cycles = 2;} else if (*pin & bitmask) { cycles = 3;} else if (*pin & bitmask) { cycles = 4;} else if (*pin & bitmask) { cycles = 5;} else if (*pin & bitmask) { cycles = 6;} else if (*pin & bitmask) { cycles = 7;} else if (*pin & bitmask) { cycles = 8;} else if (*pin & bitmask) { cycles = 9;} else if (*pin & bitmask) { cycles = 10;} else if (*pin & bitmask) { cycles = 11;} else if (*pin & bitmask) { cycles = 12;} else if (*pin & bitmask) { cycles = 13;} else if (*pin & bitmask) { cycles = 14;} else if (*pin & bitmask) { cycles = 15;} else if (*pin & bitmask) { cycles = 16;} // Discharge the pin again by setting it low and output // It's important to leave the pins low if you want to // be able to touch more than 1 sensor at a time - if // the sensor is left pulled high, when you touch // two sensors, your body will transfer the charge between // sensors. *port &= ~(bitmask); *ddr |= bitmask; return cycles; }

Fonte: Baseado no programa do piano de alumínio (Professora Lorena)
